Yesterday I met a lady who takes the bark from a certain type of tree, pulps it and makes paper. This paper is then sold as a specialty gift paper to tourists and others. It’s an example of Malagasy entrepreneurship, where the whole family is part of, and all supported by, this business. The manufacturing takes place in their backyard, the retail sales from their front porch.

In a rather laborious process, they first pulp the bark, then lay it out on a big sheet and submerge it in water. It’s then taken out after it has settled evenly and is decorated while still wet with flowers. Once dried, they can create everything from cards to boxes. The cards and more elaborate items sell for around $1 each, which nets a healthy profit from the original cost of the bark, which is a couple dollars per kilo.

Piki piki means motorbike in Kiswahili

This gadget was created to solve a real problem with biogas – getting the dung to the system quickly and efficiently. Motorbikes are the taxi’s of Africa so why not? Before I tell you about the above gadget I just want to remind you about the problems we have been having to solve to get the biogas to work at home.

Installing biogas at home has a real experience in afrigadget – we have figured out by trial and error how to get the gas under pressure –

At first we tried using water pressure, but when we stepped back and looked at it we realized that it really wasn’t simple or appropriate for bush applications ..

In fact, all we needed to do was to put pressure on the bags.

The pressure wasn’t enough to run the stove until we modified the stove jets by enlarging them slightly.

Next we had to figure out how to get the dung to my digester – you see I don’t own cows but my neighbors who live a few kilometers away do and are selling it at a very nice rate of Ksh 50 (70 US cents) for two large buckets . The owners are happy to see the dung as it  accumulates in the nighttime stockades and attracts annoying flies that carry diseases if left on the land.

The problem I face is common to many folks around here, we rent houses  but we don’t have livestock. But there are huge cattle farms around us. So Dominic came up with a solution that creates jobs and moves poop quickly and efficiently.

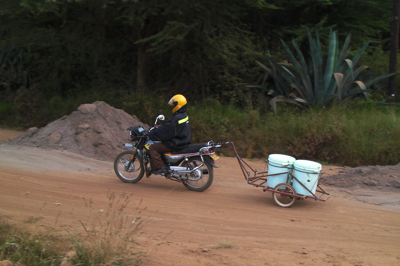

So we went to the local juakali welder on the roadside to create a dungmobile ..a trailer designed specially for cow dung!

We tested it with a human load to ensure it is balanced … each bucket weighs about 50 kg.

And the first delivery arrived without a problem!   Big Thanks to Dominic Wanjihia who seems to always have a simple solution to any problem.

I know you are wondering, if it’s that easy, then why doesn’t everyone use biogas?

Now that I’ve got biogas running my kitchen I wonder why so few people have done so in Kenya. There are countless articles, publications, websites and people who will tell you that biogas is the most economical and environmentally sustainable way to produce energy. In fact, the benefits of Biogas have been known for tens of years, and hundreds of systems have been built in Kenya. But it hasn’t really taken off –  few of the installed systems are actually working and the uptake of biogas systems at a domestic level has been slower than slow – it’s virtually non-existent.  A review of biogas in Kenya reports that technical breakdowns has discouraged uptake but the main limiting factor is cost.

Here’s a simple comparison of costs – from continuing using charcoal/fuelwood or Kerosene and LPG to using various biogas options.

For a simpleton like me these figures are immediately revealing – it takes 2 years to pay off a flexibag digester after which domestic fuel is free for at least the next 10 – 13 years. For the underground systems you have got to be  hugely rich, or suffering from environmental guilt to make the decision to switch to biogas – from an economic perspective it will take 10 to 20 years to pay back. You could grow your own trees and make your own charcoal  in that time frame….

Why is it so expensive for the constructed biogas systems? Because most of the biogas systems  in use are constructed systems requiring engineering and masonry, they are very expensive, take weeks to install, require experts, and intensive follow up. If they go wrong it’s a major engineering task to fix it. This is why we are promoting the flexible bag option for domestic and small industry use.

Congratulations to Skylink Award winning Kenyan  biogas innovators

We would ;like to congratulate Skylink Innovations who have just won a the Ashden 2010 Award for their biogas installations in Kenya.

Skylink recieve the Ashden Award from Sir Richard Attenborough

I thought skylink was an airline… Biogas operated planes???

Human waste digester under construction in Meru Prison

Their industrial scale system costs Ksh 1.6 million (US$ 19,753). Such installations may need to be financed by the Government institutions where they clearly make enormous economic and environmental sense for schools, prisons and other large institutions.

For small scale house hold units, we need solutions that will compete against the cost of installing LPG or using charcoal, firewood or kerosene stoves. When we talked to local Maasai near Nairobi they found the flexi bag systems appealing because they could be purchased with the sale of just 2 or 3 cows, can be rolled up and moved when they migrate, and it saves the women the work of searching for firewood, it’s hygenic because water can be heated for bathing children, while it also removes dangerous piles of rotting cow dung near the homesteads which are breeding sites for biting and disease carrying flies which affect livestock and people.

You’d think that given the amount of cow dung available around rural Africa that biogas would be a big hit right? Well, its actually relatively unknown. The main reason is materials, coast and complicated technology. People in these areas use charcoal or wood for their domestic cooking needs – its not only dirty hard work to collect firewood, but it’s unhealthy and damages the environment. But, it’s free …

We believe that  biogas from cow dung holds huge promise for rural and urban areas as a cheap source of energy that can be turned into domestic use or even business anywhere in rural Kenya….eg. pasturizing milk, making yoghurt, running fridges, generators, hammer mills for grinding corn, cooking, baking, heating water, running machines… and reducing your carbon footprint.

I have recently become the latest guinea pig for Dominic Wanjihias experiments … and it has been quite a learning experience

Problem No. 1.The system needs to be cheap and mobile for communities who don’t own land or who move regularly (pastoralists)

Simply Logic flexi -bag for biogas - small, cheap and made of parts you can find in any hardware

Biogas system on a motorbike in Kenya

You may need a Dominic to help set it up

It can be dirty work - but don't let that discourage you...

After only 2 weeks it will have ballooned like this

After only 2 weeks the bag will have inflated with methane - beautiful biogas

Great party trick: The biogas will burn and amaze

Problem No. 2. The pressure is not enough to light a stove. Nothing ever works as you initially planned that’s why having a fundi like Dominic around to modify, adapt and rethink as you go along helps so much.

To create pressure Dominic got two tanks, and did some juakali pipe connections. One tank was placed above the other. The lower tank was filled with water. Long pipes and short pipes were put through the lids and specially made holes in the tanks …  It’s all about applying simple physics really…

You need a few tools - all available at tusky's or Nakumatt

Then using a pump ..(we’ll be using a modified bicycle pump next time) he was able to move the gas from the flexi bag to the lower tank and displace water to the upper tank. This water creates enough back pressure to get the stove to light.. that’s the theory … here is what happened.

A curious boda boda rider (motorbike taxi) called Victor volunteered to help… Rhoda watched in awe

Victor pumped... others set up the stove

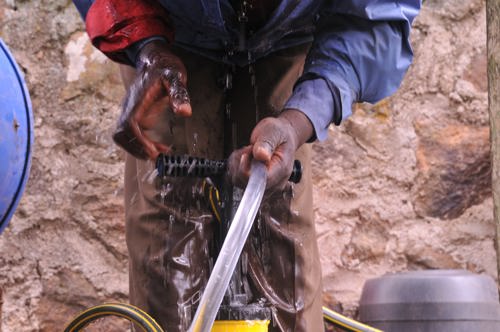

“Houston we have a problem” …Ok, accidents are bound to happen…pressure pushed the pipe off  and Victor got soaked..just water though. The top tank fills with water as you pump biogas into the bottom tank, and the water drains back to the bottom tank as the gas is used

Course all this hard work was not for nothing – we had to make a cup of tea -

It took 15 minutes for the water to boil!

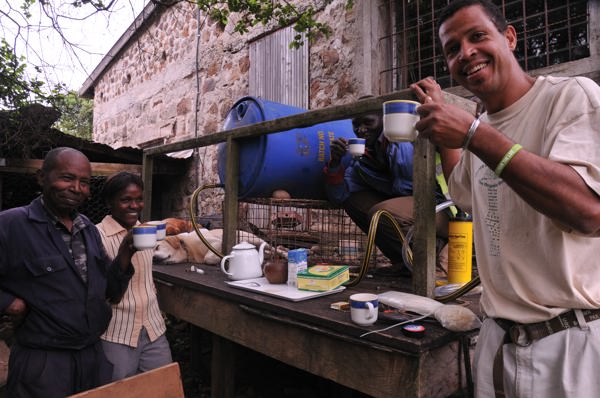

Yes we are very very proud that the system worked so Cheers! a well deserved cup of tea.

We estimate that it took about 1/4 to 1/2 of the gas in one blue tank to boil the kettle – that’s about 1/8th of a cubic meter – and the entire flexi bag contains about 5 cubic meters… which means we have about 10 hours of gas use…..and the stuff is being produced all the time (we had quite some wastage as we fooled around to get the system to work)

Well it all seemed to be going just fine when …pssssssttttt

Houston, we have another problem...we sprung a leak!

Nothing serious but we were losing a bit of gas through one of the lids (holes had been drilled through the  lids to insert pipes) …we  need to fix that before we build up any pressure in that tank.

If you are interested in biogas let us know! Leave a comment.

Amid the squalor in one of Kenya’s most depressing slums, there is a surprising amount of flashy colour and fun

Njuguna makes these toys because he like to! His clients are local people in the slum but he does sell well outside of that market too.

I was especially enthralled by this scrap metal motorbike but the price was Ksh 2,500 (US$ 30) which may have been a special price for visitors like me – I couldn’t afford it!

Scrap metal gocart – boys in heaven!

Njuguna also makes beautiful micro toys for a specialist corporate market – they had been sold but he had photos

You guessed it – client was Safaricom!

Amongst all the toys were some other serious gadgets that Njuguna had put together for no specific reason -a couple of free standing windmills rotate rapidly in the narrow streets that channel the wind. They stand there like artistic monuments, but Njuguna told me that he made these constructions made from parts taken from broken cars and had put them out and was waiting for an idea to strike him regarding what to apply them to. He called it his research experiment. …  somewhere else lay another of his inventions, a waterpump  …..(should I have suggested something?)

Visiting Kibera was disturbing in so many ways

,

….and yet it was thoroughly invigorating and inspiring – a pleasant surprise . If you ever get a chance, do visit and seek out the Njuguna’s tucked away in narrow streets. These brilliant artists and innovators might live in what seems like the worst hell on earth, yet somehow it feels like they choose to.

My good friend Jagi Gakunju who runs the Kenyan environmental cyclists club Uvumbuzi club told me about this project which immediately caught my attention. It’s a collaboration with Africans and a Dutch organization.

You can read all about Cycling Blue in Kisumu on their Cycling Blue blog

The Cycling Blue Kenya workshop is providing courses, micro credit for (modified) bicycles and creating of employment, it is aimed to reduce poverty. In the workshop bicycles will be modified to create bicycle carts (for instance bicycle ambulances) for sale. Who buys them?  Garbage collectors, local entrepreneurs who want a (modified) bicycle to generate income such as the Cool coolbox, bicycles with extended carriers for transport of cabbages.

Here’s what they are cooking at the moment in Kisumu

The idea that bicycles in Africa get modified and adapted for local uses is definitely 100% afrigadget.

Check out the brilliant Cycling out of poverty  website here for more photos and videos.  For more information Luuk Eickmans

Cycling out of poverty
info@cyclingoutofpoverty.com
http://www.cyclingoutofpoverty.com
0031-(0)615895529
SNS-bank 90.61.46.356

If you and your family want a great weekend out on bikes, join the Uvumbuzi cycling club here

What do you get if you cross tractor tyres, motorbike wheels and a water pump? Well, in Africa you could get anything! Here’s an odd combination of things related to water – recycled tractor tyres cut to make water troughs

This contribution is thanks to Bankelele (the very cool Kenyan blogger) who responded to a recent post on tractor tyres with the comment “I found a similar one last week and e-mailed it to hash, but perhaps the pics should be added to this post as its the same use of tractor tyre for livestock water”. He spotted it in Feb 2010 during funeral at a homestead in kapsowar, Kenya (note to Banks – Thanks for this, and next time send me low res pics dude!)

well it works doesn't it?

Here’s another water related gadget – a water pump turned into a grinder – and why not? This was spotted and photographed in Gikomba in Nairobi Kenya by Dominic Wanjihia.

A modified wheel barrow that makes so much more sense – motorbike tyres and check out the puncture proofing on the wheel below

Puncture proof!

This was spotted on the Limuru  road works near Nairobi Kenya. Have you seen anything interesting that you’d like to contribute to Afrigadget? Don’t be shy! Send it to us – we’d love to get contributions from across the continent.

I have just spent a week in the field studying Masailand ecology and community conservation with Princeton University students. The location is not that remote (Kitengela and Olerai within 40 km of Nairobi) and the community are wonderfully resourceful when it comes to day to day tools for pastoralism.

Tractor tyre trough for water for goats and sheep

This old tractor or truck tyre was somehow cut, opened up and sealed at either end to make a perfectly good livestock watering trough. Even Joy Adamson noted that the Masai question using modern appliances if home made ones do the job anyway.

Tractor tyre cattle salt lick

Another way to make  a salt lick, Evelyn just cut a truck tyre in half and placed it  on the ground supported by stumps.

home made bucket works perfectly

Why buy a bucket when you can just make one with an old water container and a piece of metal?

Home made shovel

And if you don’t have a shovel for your manure, just straighten out some corrugated iron, cut it and nail to a stick  and Presto – probably more effective than anything you could  buy in Nairobi. Manure is one of the few products sold to passing trucks on these remote ranches.

Keeping land open for wildlife migrations in and out of Nairobi National Park can be costly to those living with wildlife. Those in The Wildilfe Foundations land lease scheme earn 4$ per  acre per year to keep the properties open (no fences)  and to supplement their income they make beautiful beaded artworks for sale on Olerai Conservancy.

It might look like a tough life for some of us, but the Masai out here seem perfectly satisfied and at peace

In Baringo one farmer has come up with two rather interesting innovations.

Murray Roberts is in the business of planting restoring grasslands which involves planting grass seeds in severely degraded landscapes.

The primary purpose of ploughing is to turn over the upper layer of the soil, bringing fresh nutrients to the surface, while burying weeds and the remains of previous crops, allowing them to break down. It also aerates the soil, and allows it to hold moisture better.

A traditional plough comprises a series of blades all facing the same direction.

Murray Roberts has modified his plough so that it has two blades facing each other. These create a hill and furrow effect which is perfect for grass seeding to improve the trapping rainwater in this semi arid part of Kenya. Normally the rainwater hits the surface and sheets off the ground carrying away the valuable top soil and seeds!

But that’s not all. Ever tried to make a fence using barbed wire – you know how tangled it can get? Well not if you use one of Murray Roberts fencing gizmo, it’s basically a tool onto which you thread the barbed wire so that when you go out into the field to fence a plot, you can release the wire in an untangled manner and under tension.  Simple and obvious and you don’t need a wire tightening tool.

That’s William Kimosop and Princeton University Undergraduates checking it out – don’t ask  me what that dog is up to!

When Dipesh Pabari of Camps International sent me pictures of these laptop bags and bottle can holders, I just knew it would be something you AfriGadget fans would appreciate.

The fact that discarded waste is converted to something very useful… Its definitely AfriGadget. I asked Sander Den Haring a few questions about these cool products.

How did you begin your company?

I was born in a small town called Hellevoetsluis in the Netherlands but only lived there till i was 5. At that point my family moved to Yanbu, Saudi Arabia where i grew up and ended up spending 16 years. Yanbu is an industrial town situated on the Red Sea and i believe that a lot of the what, who, why and where i am is as a result of this. From the very beginning of our time in Yanbu my parents began a weekly outing to the beach which my brother and i eagerly anticipated every Friday (weekend is Thursday and Friday in Saudi Arabia). Once at the beach we would go out and snorkel virgin reefs in the Red Sea and be stunned by the serenity and tranquility each and every time. My love for the aquatic realm and the conservation of said realm has derived from these expeditions. It led me to complete a Masters in Marine Biology from the University of Groningen in the Netherlands in 2000 so that i could work in the field of marine conservation.

In 2004 i moved to Kenya where i have lived ever since. I began work for Buccaneer Diving as a base manager and soon added on the role of resident marine biologist. Under this capacity i was able to instigate a snorkeling program for some of the underprivileged local government schools in Mombasa (Schools to the Sea program) and an artificial reef program in the Mombasa Marine Park. Both these projects had local partners involved as well. I eventually finished full time work with Buccaneer Diving in June 2009 as the Operations Manager of Buccaneer Diving Kenya and currently fulfill only a part-time quality control position within all of Buccaneer Diving (Kenya and Zanzibar).

I really enjoy thinking of ways to create environmental attitudes and the recycled wetsuit product line has been great in achieving this thus far! We are still coming up with new products and refining the existing products. There are no limits barring our creativity.

What was the inspiration for re-using the diving wetsuits?

In the dive industry wetsuits have a finite lifetime after which they become ineffective (have lost their insulating capability), or they become too hole-ridden to use in a professional business. In the past, these wetsuits were discarded. This seemed an obvious waste of material (as for the sake of a few holes, large patches of usable neoprene were being thrown out), so Buccaneer Diving began looking at what could these patches of neoprene be used for. Traditionally we have used smaller bits of neoprene for various “odd jobs” (eg. snorkel holders, buffering/padding material, informal packaging, patch material for other wetsuits), but these “odd jobs” required small amounts that did not need frequent replacement. So we started thinking if there was anything else that could be made and the obvious item was laptop bags. The bottle/can holders soon followed suit as the sleeves and legs of wetsuits already had the obvious shape (they just needed a bottom added). We are currently making the products more of an “item” and also looking into how we can incorporate the production of these products to benefit other charities. these exciting developments will be happening within the next few weeks we hope so definitely watch this space (it’ll be worth it!).

When did you start selling the bags/bottle covers etc?

This is a new venture and its been active for the last seven months, so still very young. We are looking at various other items we can make from the recycled neoprene (placemats and coasters might be possibilities).

How much do the items cost?

Currently the laptop bags sell for Ksh 2500 (about 32 usd) and the bottle/can holders ksh 350 (about 5 usd)

Are they made in Kenya/Mombasa?

They are indeed produced in Mombasa. Again, the story behind the production will unfold in the next few weeks and its worth the wait.

Where can people order? Can they pay by MPESA (Mobile Money)? (Just kidding, but hey!)

These products can be purchased at the Buccaneer Diving base at the Voyager Beach resort, Mombasa. We have not yet explored the use of MPESA in the purchase of these products as they are still young, but who knows what the future will bring. We can also arrange for products to be sent via courier if people are unable to visit the Buccaneer Diving base. Sander can be reached via email sander at green-water [dot] org.

Can a parabolic mirror be flat? Dominic Wanjihias latest invention may prove that this is the most efficient way of capturing solar energy.

Everyone knows what a parabolic reflector is, right? It’s supposed to be a curved surface that collects energy by converging it towards a focus. Parabolic reflectors were invented a very long time ago and have been used in satellite dishes, spot lights and car headlights to name a few. They are also widely used for alternative energy projects to concentrate solar energy for heating and cooking.

Dominic (designer of the flexible solar vest, the solar dryer, and camel milk cooler for Somalia) thinks that the parabolic mirror should lose it’s shape which is an obstacle, to transportation and function.

So how does the flat parabolic mirror work? Dominic has cut inch wide 2 foot long pieces of flexible acrylic mirrors and arranged them at specifically computed angles. When angled towards the sun, this creates a perfectly focused beam of light.

This concentrated energy can be used to heat water in a pipe for numerous purposes including generating electricity. The beauty of this gadget is that

1. It is very cheap,
2. It can be quickly dismantled or moved,
3. It is easily transportable as it can be carried flat or in a tube,
4. It is easily repaired if broken as the individual mirror pieces can be replaced (rather than having to fix or replace an entire parabolic mirror).

Please note that this is part of Dominic Wanjihia’s ongoing project with Nairobi University and MIT’s FabLab where he is doing a course.

.
