Ball Valve Chlorine Doser

Chlorine water filter and doser

With one 5 liter bag of chlorine, and a device that costs $3 to build, you can clean 100,000 liters of water.

Here at Maker Faire Africa is Killian Deku, a Ghanaian working in the IDDS program, has created a ball valve chlorine doser with the help of his team mates from India, the US and Tanzania. Their only real costs were the ball valve and the time taken to create the bamboo structure that holds it. The one variable cost is the bag of chlorine used to cleanse the water.

Ball Valve Chlorine Water Cleanser from WhiteAfrican on Vimeo.

Distilling water from volcanic steam vents

A unique water harvesting method has been devised in the drought ridden crater of Mt. Suswa, which is dotted with continuously puffing scorching steam vents.

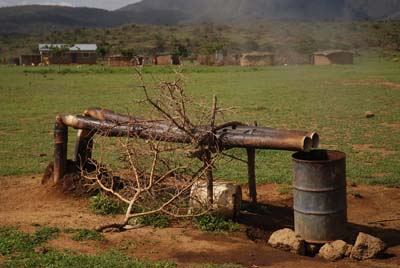

Tapping steam for condensation
Tapping steam for condensation

Taking advantage of the steam vents that dot this landscape, local Masai have ingeniously tapped the vents for steam that is condensed on long plastic pipes that drip continuously into drums. The local Masai claim that these vents can fill half a drum (approx 30 lt) per hour (though it seemed very unlikely to us). The water is sweet and apparently it feeds a community of several hundred people and their cattle with fresh and clean water.

We saw at tens of these contraptions in a particular zone within the outer crater of Mt Suswa. All were protected from animals by thorn bushes. There seemed to be an ownership structure amongst the users, some were better constructed, had longer pipes, were better protected and maintained. We were told that the systems were installed fifteen years earlier and it did not look like any modifications had been done since then.

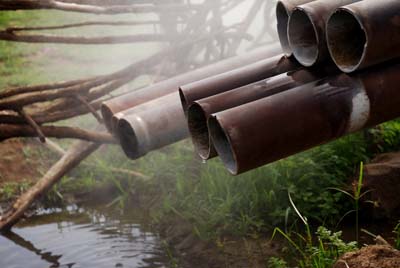

pipes1

The water distilling system used here is permanent and produces a continuous supply of clean water that is collected regularly by the local community. The system we observed was in the area called Kishalu – just beyond a school. The system could be more efficient at trapping condensation – much steam was wasted as pipes were quite short, and collection drums were left uncovered and open to evaporation. The beauty of the system is that it works overnight. These water distilleries were introduced to enable the community to survive the dry season when rain water catchments had dried up.

The Suswa system is infinitely better than the water distilling process on the edge of Lake Elamentaita. Here the local Masai Women daily place a piece of zinc sheeting over a steam vent to capture condensation. They produce only 2 liters per day; a days work to produce enough drinking water for a small family for one day.

If there’s an Afrigadget award out there, the Suswa water distilleries deserve it.

josh-and-kadonyo-suswa

For more information about Mt Suswa check out Roving Rasta, and Wild about Africa for satellite images and details about hiking and caves

a tribute to SODIS

Solar water disinfection (SODIS) has been around for quite some time now and with approx. over 340.000 users in Africa alone, this low budget water disinfection “technology” is a smart approach that deserves to be mentioned on AfriGadget.

In areas where piped drinking water just isn’t available or of questionable quality, solar water disinfection is a cheap and effective method for decentralized water treatment as it can be applied at household level. It is a simple method that’s easy to teach and is designed for small scale production.

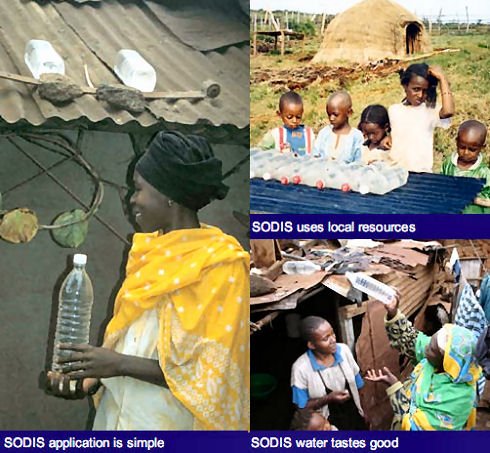

sodis1
(source )

SODIS uses solar radiation to destroy pathogenic microorganisms which cause water borne diseases:

Sunlight is treating the contaminated water through two synergetic mechanisms: Radiation in the spectrum of UV-A (wavelength 320-400nm) and increased water temperature. If the water temperature raises above 50°C, the disinfection process is three times faster. (source)

The World Health Organization (WHO) even recommends SODIS as a viable method for household water treatment and safe storage.

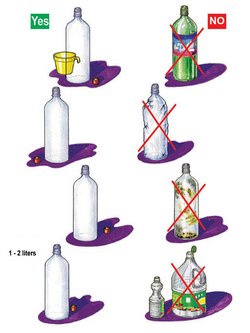

All you will need are clean & transparent PET bottles, fill them up with water and expose them to direct sunlight for at least 6 hours . Many people also put them on a corrugated roof (to increase temperature) and saturate the oxygen content inside the bottles prior to the sun treatment by filling them up three quarters, shaking them for 20 seconds with a closed cap on and then fill them up completely.

sodis4sodis3
(source)

SODIS may also replace the boiling of water which often requires vast amounts of firewood or other natural resources, so it not only helps people obtain safer drinking water (conventional filter candles are expensive and not always available) but also helps to preserve the local environment.

SODIS obviously can’t substitute really clean drinking water, and it often also requires pre-treatment in case the water turbidity is too high . Users can easily reduce the turbidity though by letting the bottles stand for a while until the particles settle to the ground and then also filter it through a folded cloth.

The best aspect about SODIS though – despite of it’s low budget approach – is that consumers are directly in charge of their drinking water and have a working method that enables them to treat their own drinking water.

The Swiss Federal Institute of Aquatic Science and Technology (Eawag) also published a very informative website on SODIS and provides more details about the technology as well as case studies from around the world.

Elephant Pumps

Here’s an interesting simple, low-maintenance technology:

Elephant Pumps” that were introduced to rural areas in Zimbabwe and Malawi during the last few years. These rather simple, enhanced rope pumps (based on an ancient Chinese technology) where designed for use in rural areas, where the supply of readymade spare parts isn’t that easy.

Cycle option on an Elephant Pump
Cycle option on an Elephant Pump

Now, what makes the Elephant Pump so different from the other popular low-maintenance pump “Afripump” is that it’s locally assembled and maintainable by the local community. Both systems – Afripump and Elephant Pump – may have their pro & cons (80-100m depth, high durability, low-maintenance vs. <40m depth, simple design, cheaper), but I especially like the “bicycle option” added to pumps which were built for schools:

On school pumps Pump Aid often incorporates a “bicycle” system onto the Elephant Pump since this has proved enormously popular with children. Most children in Zimbabwe have never had the chance to ride a bicycle so can even come to school early to “play” on the pump thereby helping to fill the school water tanks. The job of collecting water, once a tiresome chore, becomes fun and children no longer have to leave their classrooms to walk miles carrying buckets of water on their heads from a distant muddy pool.

The British Charity Org “Pump Aid“, which has in the past introduced and promoted these systems in Zimbabwe and Malawi for the costs of GBP 250 (~ USD 460, EUR 310) each, also created a very informative video on how the technology actually works:

“The Elephant Pump yields about one litre of clean water every second for an average well depth of 20 metres.”

It’s simple, it works, it wins! 🙂

[h/t NextBillion.net]

AfriGadget Innovator Series: Simon Mwacharo of Craftskills

I recently had a chance to conduct an email interview with Simon Mwacharo, an entrepreneur based in Nairobi, Kenya who a great example of what George Ayitteh has so aptly described as “The Cheetah Generation”.

Simon owns and runs CraftSkills, a small business based in Nairobi, Kenya that focuses on designing and building self-sustaining renewable energy projects in places not accessible to the electric grid. Craftskills had to date undertaken challenging projects in Kenya, Uganda, Tanzania, Cameroon and Rwanda among other places. Simon, whom AfriGadget first got to meet last summer at TED Global in Arusha, Tanzania, graciously agreed to conduct an email interview with AfriGadget.

Craftskills windmill project

AfriGadget: Could you tell us when and how Craft Skills got into the business of renewable energy in East Africa and the inspiration behind the organization?

Simon: CRAFTSKILLS was found in the year 2000 by myself. I was inspired by a challenge from my rural home where we have not had power for the last 40 plus years since [Kenya’s] independence [in 1963]. I come from a hill side village in Sagalla, Taita Hills in Coast Province where we receive quite some strong wind from the Nyika Plateau. This wind passes through without being tapped and sometimes our roofs can not stand in its way.

I started talking to people about wind turbines and how I can get an affordable one which I can make and produce for other needy people. When darkness falls in these villages plus the fog it is virtually impossible to travel the terrain at night.

AfriGadget: Tell us a little about the people behind Craft Skills and the staff who work for the organization.

Simon: I started with two workers. I could not afford to hire trained people so I decided to train myself first then train my two boys. Then I got a friend who repairs radios and TVs in Kibera to help me design and put together a charge controller.

Now we have a team of 20 people and other partners out there in the field with their staff totaling 50. We have technicians, welders fitters, fiberglass experts and engineers and sales people.

AfriGadget: What is the typical profile of a Craft Skills project? Who is your typical client and how are the projects typically executed?

Simon: Most of our clients are not the owners of the projects we put up. They benefit from the battery charging services in the wind/solar sites we put up with our partners. The low income earners who cannot afford grid power or are in settlements where grid power is unavailable. We take both to do the sites ourselves involving the people on the ground as partners. Others are home owners who have invested a lot on building good homes in non grid areas – these put up turbines for their own use like lighting, and pumping water from wells and boreholes. The other segment is the business people I market areas where there is no grid who put up turbines to run charging centres and sell power to other shops or run their off-grid businesses like lodges and hotels, schools and other institutions.

AfriGadget: Can you share with our readers some of the challenges that Craft Skills faces in executing your projects?

Simon: We have faced cultural challenges where we cannot put a turbine on the most ideal site due to beliefs on such sites hence we have to educate the citizens to allow us to do so or redesign the project and relocate. Another is the financial capability of the citizens we find in these off grid areas.

[As a result of this] we have designed low power product (battery bundles and LED lights) to reach them so that they can be counted as beneficiaries of this new technology.

AfriGadget: Why renewable energy? What is the rationale behind Craft Skills’ exclusive focus on projects that produce energy from renewable sources.

Simon: We were looking for something which is affordable and sustainable and cuts across the economic sectors. Solar was proving to be more expensive, delicate, sophisticated and easily stolen when installed on ones home. We needed to sell people more power at a cheaper rate hence wind was the best candidate.

Wind is everywhere just like solar – one needs to get the right spot to put the turbine as high as they can. Its 24 hrs (Day and Night) and we found a cheap way we could make our turbines take advantage of low wind situations with the multi-pole generator, hollow blades for the propeller, with 90 per cent locally available materials making our technology the best application for this region.

AfriGadget: Which would you say has been the most satisfying/gratifying project that you have been involved with at Craft Skills? What was so special to you about this particular project?

Simon: The Chifiri water pan project to me is most gratifying. This settlement is all arid land pastoral community. The demand for water for drinking washing and watering the thousands of livestock is enormous.

Our turbine provided a cheaper solution for water and lighting the “manyattas” around the water pan. The contractor on the ground is excellent on his construction of the earth dams. His design impressed me that water was going to be available for over 6 months instead of the normal 4 months after the rainy seasons. He made sure the dams were well compacted and fenced to avoid animals hoofing inside the dam – increasing the rate of percolation and lose of water in the ground. Water is only available at the kiosks which are piped and placed near the settlements. The project provides water troughs for the animals to drink from and bathrooms for the people to clean themselves in. Within the fenced dam there is an armed home guard or caretaker manning the place with a security light up the tower hoisting the turbine.

Craftskills - Water wheel at a water project in Cameroon

Simon was also interviewed by Juliana Chebet aka AfroMusing, a Senior Editor at AfriGadget on CraftSkills. You can find the video at this link.
